Getting the best value out of your CT purchase (Pt.1)

Bit of a wordy headline but as part of my getting the best value out of your purchase series, in this weeks post I am focussing on Metering or Measurement Current Transformers.

When a customer asks for a quotation, he/she may have a price in mind. That might be based on previous purchases or a hunch, but none the less a price is ingrained.

Current Transformers (CT's) while a relatively simple product in nature, sometimes customers are not always sure about what they need and give you a specification that is wildly over-specified for the application. As a CT manufacturer, we understand you are not experts. However, loaded with some knowledge on the factors that can influence price, then there is an opportunity to extract the higher value from your purchase.

RATIO: Primary (input) & Secondary (output) Current Ratio (e.g. 200/5A)

VA: Total instrument burden, including the length of any pilot wires along with square mm of the cable (e.g. 4sqmm).

CLASS: Accuracy required for operation (Tariff, Measurement or Indication

DIMENSIONS: Maximum & Minimum ( the space you have available to fit the current transformer, e.g. for a ring-type Inside Diameter ID, Outside Diameter OD, Axial Length AL).

  1. By specifying a higher VA or ACCURACY CLASS than necessary will likely result in a more expensive product.
  2. Cost generally increases as the Current Transformers inside diameter (ID) increases.
  3. 1A Current Transformers are typically more costly than 5A, why I hear you say - 200/1A has 200 turns of copper whereas 200/5A has 40 turns of copper thus an 80% cost saving on copper, not to mention a reduction in the overall dimensions).
  4. Potentially unnecessary accessories such as mountings which are chargeable extras. (Most customers have their own preferred and cheaper method of mounting inside the switchgear).

Considering the above plays a big part in getting the right product for the right price.

For this post, we will consider IEC 61869 as the default standard, as this is our usual customer requirement. However, should you need IEEE/ANSI or AS (Australia) we are just as at home with these specifications?

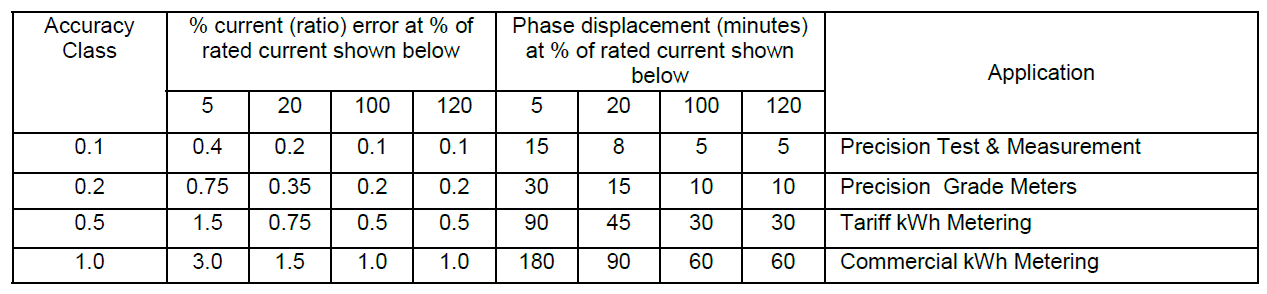

IEC 61869 standard:

There is also Class 3 & Class 5 but rarely used, most people opting for a Class 1 as a better alternative.

High accuracy classes like 0.2s & 0.5s often require a special type of core material which in itself very expensive, so this accuracy class should only be selected when a tariff application is required.

We appreciate our customers are not specialist in transformer design but have found that one of the most common misunderstood factors about specifying a current transformer (CT) is the Burden or VA. For example, if you double the burden from 5 to 10VA, you will increase the electrical steel content and thus have a significant impact on the unit price so you must get this right.

The burden is the load imposed on the secondary of the CT at rated current and is measured in VA (product of volts and amps). The accuracy class applies only to loads at rated VA and below, down to one-quarter VA. The burden on the secondary of a CT includes the effect of pilot leads, connections etc. as well as the instrument burden itself.

In situations where the meter is remote from the current transformer, the resistance of the pilot wires may exceed the meter impedance many times in these cases it is often economical to use 1 amp meters and CTs.

The diagram shows the burden imposed on the CT due to a run of pilot wire, so a pilot loop of 2.5mm2 wire, 60 metres long (30 metres distance) has a load of 12.5 VA on a 5 amp CT but only 0.5VA on a 1 amp CT.

Typical Meter Burdens (depending on the pilot lead length):

Moving iron meter 1-2VA

Moving coil meter 1-2.5VA

Digital instrument 1-5VA

Maximum demand indicator 3-6VA
