VOLTAGE DETECTORS

Sensors with an internal passive capacitive divider

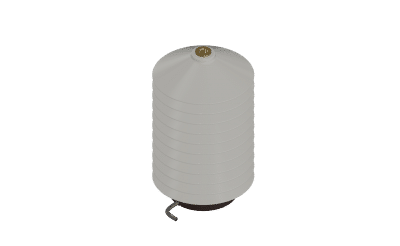

Voltage detection sensor with capacitive divider with RJ45 connector, acc. Customer Spec.

PRODUCT DESCRIPTION

The A240S-5K voltage detector is a voltage sensor based on a capacitive divider principle. Inside the product there is a high stable capacitor, with a high capacitance and up to 15nF and up to 24kV insulation level. The product is dedicated for air insulated switchgear and could be used also as support insulators with bending forces.

PRODUCT ADVANTAGES

  • Passive technology, no active parts are inside, or a power supply is needed
  • Hybrid material technology prevents humidity drift over the lifetime, especially for the capacitive divider
  • Easy installation due to single screw point on the bottom side
  • Up to 15kN bending strength
  • Correction factors for amplitude and phase inaccuracy improve the sensor class

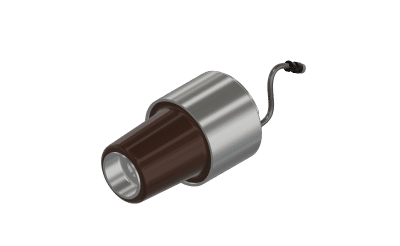

Voltage detection sensor with capacitive divider with type C cone, acc. Customer Spec.

PRODUCT DESCRIPTION

The A240P-5K voltage detector is a voltage sensor based on a capacitive divider principle. Inside the product there is a high stable capacitor, with a high capacitance and up to 15nF and up to 24kV insulation level. The product is dedicated for gas insulated switchgear and is used for asymmetric T-connectors from a range of different manufacturers.

PRODUCT ADVANTAGES

  • Passive technology, no active parts are inside, or a power supply is needed
  • Hybrid material technology prevents humidity drift over the lifetime, especially for the capacitive divider
  • Easy installation due to single screw point on the bottom side
  • Up to 15kN bending strength
  • Correction factors for amplitude and phase inaccuracy improve the sensor class
